This is our custom-built XLRM to XLRF Outdoor, Underwater, Sun, and Salt Spray approved microphone cable. Construction is HICON XLRs with Sommer SC-AQUA Marinex cable.
We use the HICON XLR connectors for this because they pair well with the SC-AQUA wire and have an IP67 rating designed to protect from water and dust.
SC-AQUA Marinex cable (Part no: 200-0141AQ) is designed for demanding long-term outdoor use and will resist water, sun, and salt spray, and can be submerged to 20 meters. It supports analog audio, digital, and DMX with a 110 ohm impedance. It is a nice diameter at .19", with 26 awg conductors and a served shield. It has a high gloss jacket, is fairly flexible, but a bit springy.
This is one of the few cables truly specified for outdoor and underwater applications. If you want a cable for long-term use outside, this is the cable you need!
** We do not currently stock the HICON 5-pin XLR connectors for this, but are willing to if there is enough demand. Please let us know if interested.
- Our outdoor, sun, rain, underwater microphone cable made-to-order
- Custom Built: BETTER, FASTER, MORE OPTIONS
- Great price
- SC-AQUA Marinex cable (Part no: 200-0141AQ)
- HICON Black-Gold IP67 connectors
- Optional color label
- On the cable, not under the connector, so not a strain relief.
- Identify Length, Ex: Red=10ft, White=15ft, Blue=20ft, (you can pick your own code).
- Identify Left = White, Right = Red
- * The shrink and label may not hold up the same as the wire.
- Optional custom label (standard label is black text on white shrink, change shrink color with the "Color Label" option)
- Your name, company, or phone number
- What it's connecting to or from, for example, "CD out" "Channel 1 In" etc.
- Length label
- Your logo, please contact before ordering
- Length is the cut wire length and will be about mid-connector to mid-connector.
|

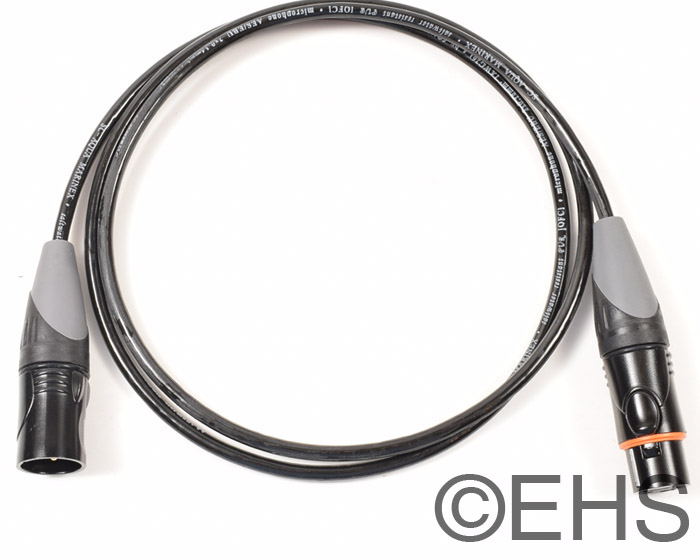

Photo 1 shows 4' cable.

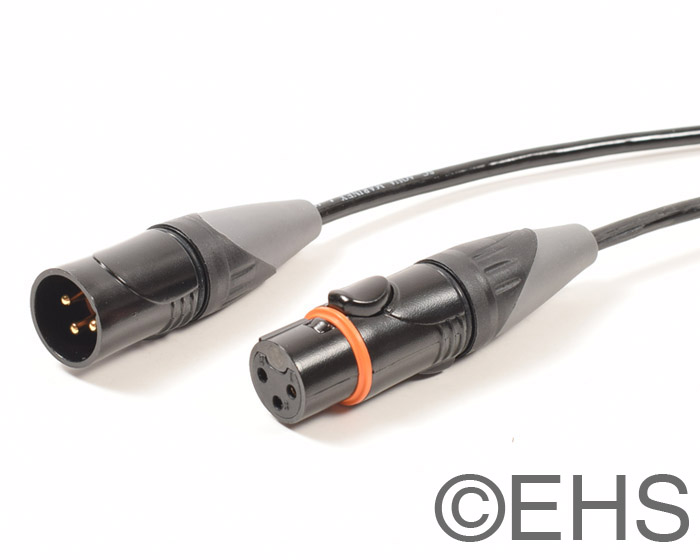

Photo 2 shows the two ends.
Photo 3 shows the wire thickness. |
|
