EHS PRO-DMX1, 5 Pin Male to 5 Pin Male XLR DMX Turnaround, EHS-Built

Model/Part Number: MX5-MX5-EHS-PRO-DMX1-LLL
Price: $29.58
Eligible For Free Shipping
(Orders Over $75)
This is our custom-built 5 pin XLRM to 5 pin XLRM DMX-512 120ohm digital lighting control cable turnaround with single pair wire (only 3 pins wired). Construction is Neutrik XLRs with our own EHS PRO-DMX1 cable. Neutrik connectors are some of the best connectors around, with no screws to fall out after years of abuse. PRO-DMX1 wire we had specially made to our spec as an upgrade to Horizon DMX1. It has a true 120ohm impedance and a better shield with both 100% foil and braided shield. It is designed for greater performance and durability. It is very flexible, durable, medium-weight cable, with 24awg twisted pair core and a dual shield with braid and 100% coverage foil.
  • Our high-quality turnaround made-to-order
  • Custom Built: BETTER, FASTER, MORE OPTIONS
  • Great price!
  • Event Horizon & Services PRO-DMX1 cable (single pair shielded wire, only 3 pins will be wired)
  • Select the length you need from 1 Ft to 400 Ft. (anything available by request)
  • Optional upgrade to Gold Connectors
  • Optional color label
    • Works great for strain relief
    • Identify Length, Ex: Red=10ft, White=15ft, Blue=20ft, (you can pick your own code).
    • Identify Left = White, Right = Red
  • Select the length you need
  • Optional colored boot
  • Optional custom label (standard label is black text on white shrink, change shrink color with the "Color Label" option)
    • Your name, company, or phone number
    • What it's connecting to or from, for example, "CD out", "Channel 1 In", etc.
    • Length label
    • Your logo, please contact before ordering
  • Length is the cut wire length and will be about mid-connector to mid-connector.

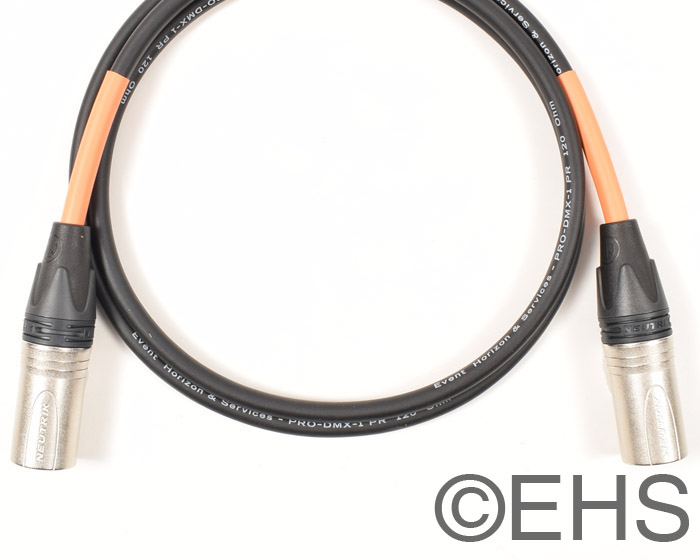

Photo 1 shows 3' cable with red shrink labels.

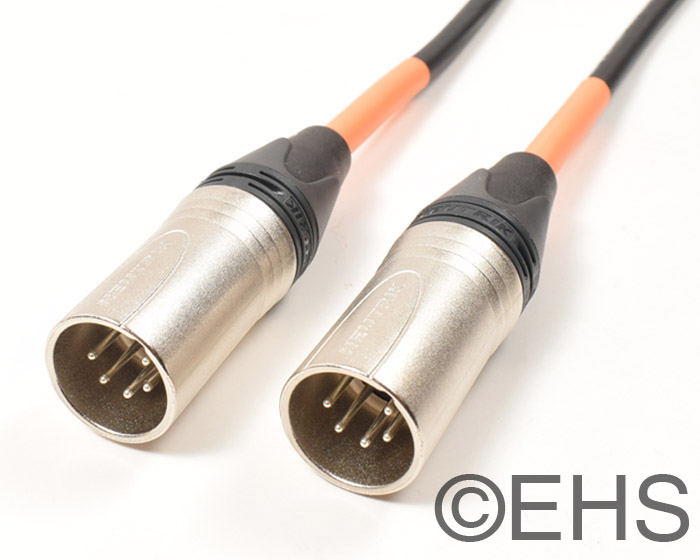

Photo 2 shows the two ends with nickel connectors and red shrink labels.
Photo 3 shows the wire thickness.
For more information about cable types, CLICK HERE.
For more information about cable lengths, CLICK HERE.
Available Options:
Click image to enlarge
Colored Boot:
  Colored Boot
Click image to enlarge
Colored Boot: BlackBlack
Colored Boot: Blue (+$3.18)Blue (+$3.18)
Colored Boot: Brown (+$3.18)Brown (+$3.18)
Colored Boot: Gray (+$3.18)Gray (+$3.18)
Colored Boot: Green (+$3.18)Green (+$3.18)
Colored Boot: Orange (+$3.18)Orange (+$3.18)
Colored Boot: Red (+$3.18)Red (+$3.18)
Colored Boot: Violet (+$3.18)Violet (+$3.18)
Colored Boot: White (+$3.18)White (+$3.18)
Colored Boot: Yellow (+$3.18)Yellow (+$3.18)
  Colored Boot
Label:
(+$3.00)
Length:
Length Additional:  -Added to Length, for over 100ft
Shrink Color Label:
  Shrink Color Label
Click image to enlarge
Shrink Color Label: NoNo
Shrink Color Label: Black (+$0.50)Black (+$0.50)
Shrink Color Label: Blue (+$0.50)Blue (+$0.50)
Shrink Color Label: Brown (+$0.50)Brown (+$0.50)
Shrink Color Label: Gray (+$0.50)Gray (+$0.50)
Shrink Color Label: Green (+$0.50)Green (+$0.50)
Shrink Color Label: Orange (+$0.50)Orange (+$0.50)
Shrink Color Label: Red (+$0.50)Red (+$0.50)
Shrink Color Label: Violet (+$0.50)Violet (+$0.50)
Shrink Color Label: White (+$0.50)White (+$0.50)
Shrink Color Label: Yellow (+$0.50)Yellow (+$0.50)
  Shrink Color Label
Special Instructions:  -Other wiring requests and changes; Fees may apply
XLR Connector Options (TA):
  XLR Connector Options (TA)
Click image to enlarge
XLR Connector Options (TA): Nickel (X series) (5M-5M)Nickel (X series) (5M-5M)
XLR Connector Options (TA): Nickel (XX series) (5M-5M) (+$4.44)Nickel (XX series) (5M-5M) (+$4.44)
XLR Connector Options (TA): Gold (X series) (5M-5M) (+$4.74)Gold (X series) (5M-5M) (+$4.74)
XLR Connector Options (TA): Gold (XX series) (5M-5M) (+$9.86)Gold (XX series) (5M-5M) (+$9.86)
XLR Connector Options (TA): Nickel: Right Angle (RA) to Straight (C) (5M-5M) (+$8.76)Nickel: Right Angle (RA) to Straight (C) (5M-5M) (+$8.76)
XLR Connector Options (TA): Nickel: Right Angle (RA) to Straight (XX) (5M-5M) (+$10.98)Nickel: Right Angle (RA) to Straight (XX) (5M-5M) (+$10.98)
XLR Connector Options (TA): Gold: Right Angle (RA) to Straight (C) (5M-5M) (+$15.33)Gold: Right Angle (RA) to Straight (C) (5M-5M) (+$15.33)
XLR Connector Options (TA): Gold: Right Angle (RA) to Straight (XX) (5M-5M) (+$17.89)Gold: Right Angle (RA) to Straight (XX) (5M-5M) (+$17.89)
XLR Connector Options (TA): Nickel: Right Angle (RX) to Right Angle (RX) (5M-5M) (+$17.52)Nickel: Right Angle (RX) to Right Angle (RX) (5M-5M) (+$17.52)
XLR Connector Options (TA): Gold: Right Angle (RX) to Right Angle (RX) (5M-5M) (+$25.92)Gold: Right Angle (RX) to Right Angle (RX) (5M-5M) (+$25.92)
  XLR Connector Options (TA)
Quantity:
Qty Discount at: 30
Return Policy: Limited --More Information
Estimated Shipping time: 1-4 Days --More Information
Shipping: Eligible For Free Shipping (Orders Over $75) --More Information
