Mogami 4 channel Insert Snake
This is our custom-built 4 channels of TRS 1/4" to Two TRS 1/4" insert cable. Construction is Neutrik TRS connectors with Mogami 2932 snake cable. Neutrik connectors are some of the best connectors around. Mogami wire is the best wire, used in the best studios for it's ultimate sound qualities and durability. Mogami 2932 cable is very flexible, durable, heavy-weight cable. Each channel is constructed as a "Y" for Insert Send-Return, wired TRS out to two TRS connectors, the first labeled for Send and wired to the Tip, the second labeled for Return and wired to the Ring.
- Our top quality insert cable made-to-order
- Custom Built: BETTER, FASTER, MORE OPTIONS
- Great price
- Neutrik TRS connectors
- Optional upgrade to Black and Gold Connectors
- Shrink Color Label: Color label for lines 1-2
- Shrink Color Label 2: Color label for lines 3-4
- Shrink Color Master: Color of shrink that covers the snake to fanout transition (custom labels are printed on it)

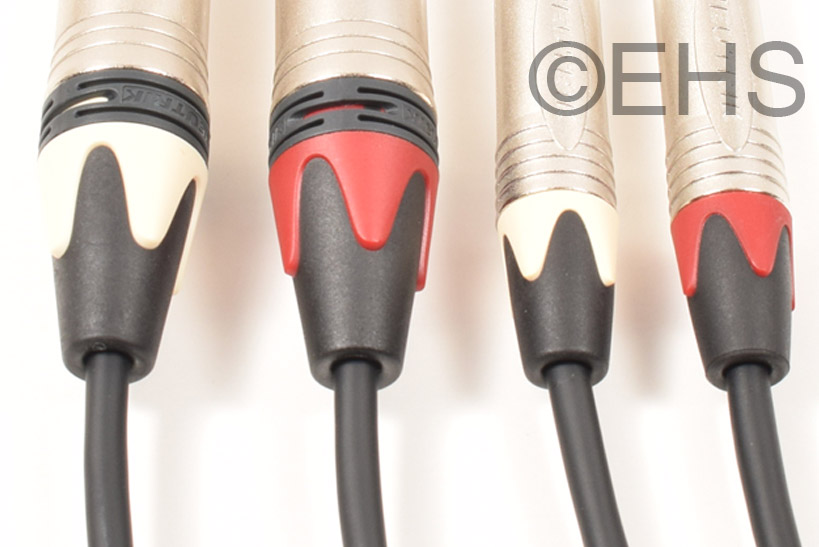

- Optional colored boots for snake / connector ID.
- Pick one color for all connectors
- "Multi Color" for multi color ID using standard color code (1 color per channel).
- Standard Color code is 4 colors: Brown, Red, Orange, Yellow
- "Snd-Ret ID" to color ID the sends are white and returns are red (Insert ends remains black)
- Optional custom label (Printed on the "Color Label Master" option)
- Your name, company, or phone number
- What it's connecting to or from, for example "CD out" "Channel 1 In" etc.
- Length label
- Your logo, please contact before ordering
- Select fanout length: Normal length is approximately 12 inch.
- Fanout Length: Length of fanout on the TRS insert end
- Fanout Length 2: Length of fanout on outboard gear end
- * If a short cable is ordered, fanout length may need to be adjusted when built
- Length is the cut wire length, and will be about mid-connector to mid-connector.
|| Photo 1 shows the two ends with yellow and green shrink color labels and visual wiring layout.
Photo 2 shows expanded view of the two ends with yellow and green shrink color labels and red master and a close up of the labels.
Photo 3 shows the wire thickness.
