This is our custom-built Mogami 2964 XLR to Dual BNC Test cable. Construction is with Mogami 2964 cable and your selection of male or female XLR connectors to male BNC. Mogami wire is (as far as I'm concerned) the best wire, used in the best studios for its ultimate sound qualities and durability. Mogami 2964 cable is a very flexible, durable, light-weight cable, with 24awg center and a dual served shield.
This cable splits the XLR signal out to two BNC connectors with pin 2 wired out to the center pin of the red BNC, which is labeled "PIN 2" and pin 3 wired out to the center pin of the blue BNC, which is labeled "PIN 3". Pin 1 ties to both shields and BNC housings.
This cable is designed for the Quant Asylum QA403 Audio Analyser or other similar gear.
- Our high-quality coaxial cable made-to-order
- Custom Built: BETTER, FASTER, MORE OPTIONS
- Great price
- Mogami 2964 super flexible coaxial cable
- Dual Served shields
- Neutrik Black Gold XLR connectors
- Neutrik RearTWIST BNC
- Select the length you need
- Length is the cut wire length and will be about mid-connector to mid-connector.
|

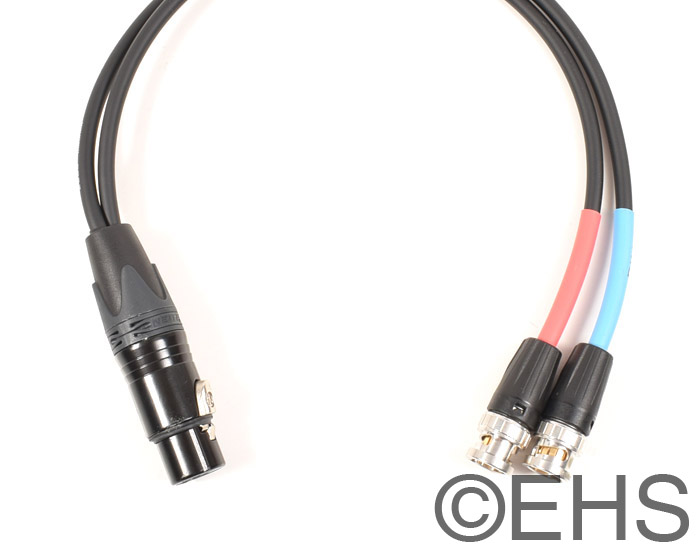

Photo 1 shows a 15-inch cable.

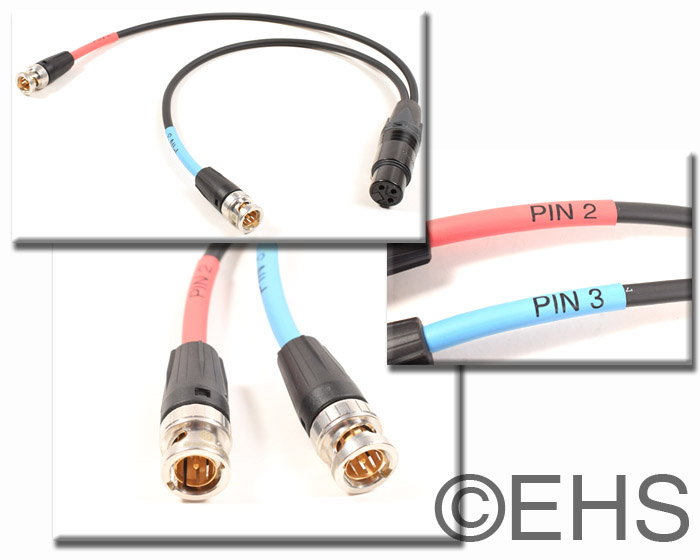

Photo 2 shows the ends and labels.
Photo 3 shows the wire thickness. |
|
For more information about cable types, CLICK HERE. |
