This is our custom-built 3 pin XLRM to 5 pin XLRF DMX-512 110ohm digital lighting control cable. Construction is Neutrik XLRs with Mogami 3080 cable. Neutrik connectors are some of the best connectors around, with no screws to fall out after years of abuse. Mogami wire is the best wire, used in the best studios for its ultimate signal transmission qualities and durability. Mogami 3080 cable is very flexible, durable, light-weight cable, with 25awg twisted pair core and a served shield with drain.
- Our top quality control cable made-to-order
- Custom Built: BETTER, FASTER, MORE OPTIONS
- Great price
- Mogami 3080 Digital cable
- Select the length you need from 1 Ft to 400 Ft. (anything available by request)
- Neutrik XLR connectors: (see below for all options)
- X Series
- XX Series
- Right Angle (RX Series)
- Optional color label
- Works great for strain relief
- Identify Length, Ex: Red=10ft, White=15ft, Blue=20ft, (you can pick your own code).
- Identify Left = White, Right = Red
- Select the length you need
- Optional colored boot
- Optional custom label (standard label is black text on white shrink, change shrink color with the "Color Label" option)
- Your name, company, or phone number
- What it's connecting to or from, for example, "CD out", "Channel 1 In", etc.
- Length label
- Your logo, please contact before ordering
- Length is the cut wire length and will be about mid-connector to mid-connector.

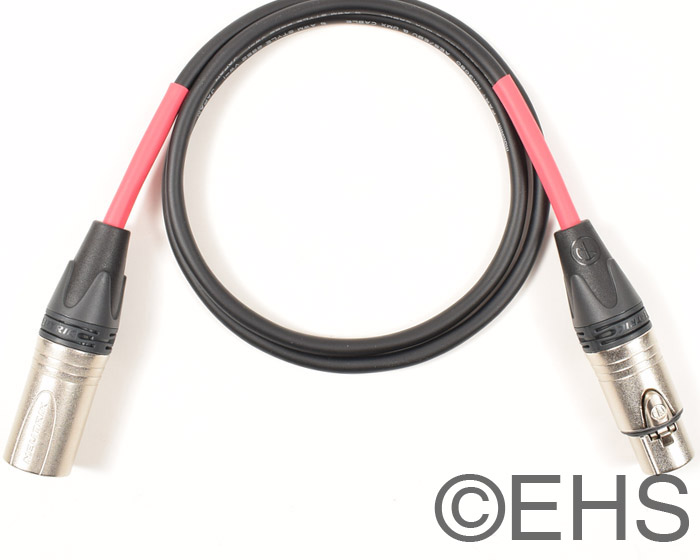

||Photo 1 shows 6' cable.

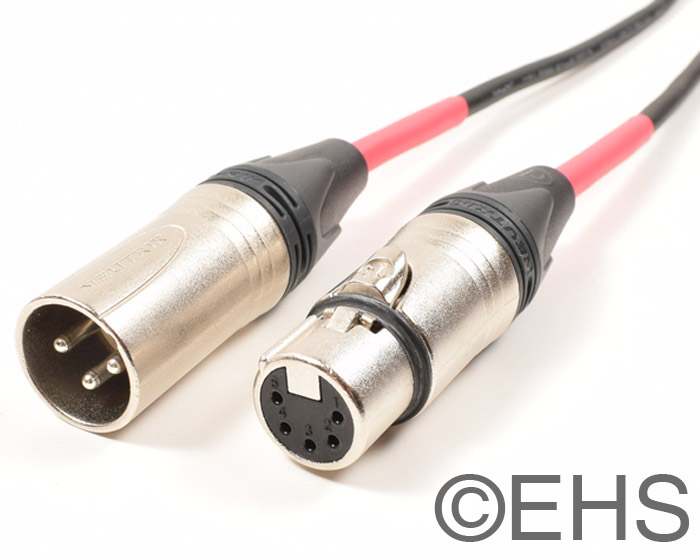

Photo 2 shows the two ends with nickel connectors.
Photo 3 shows the wire thickness.
||For more information about cable types, CLICK HERE.
||For more information about cable lengths, CLICK HERE.
